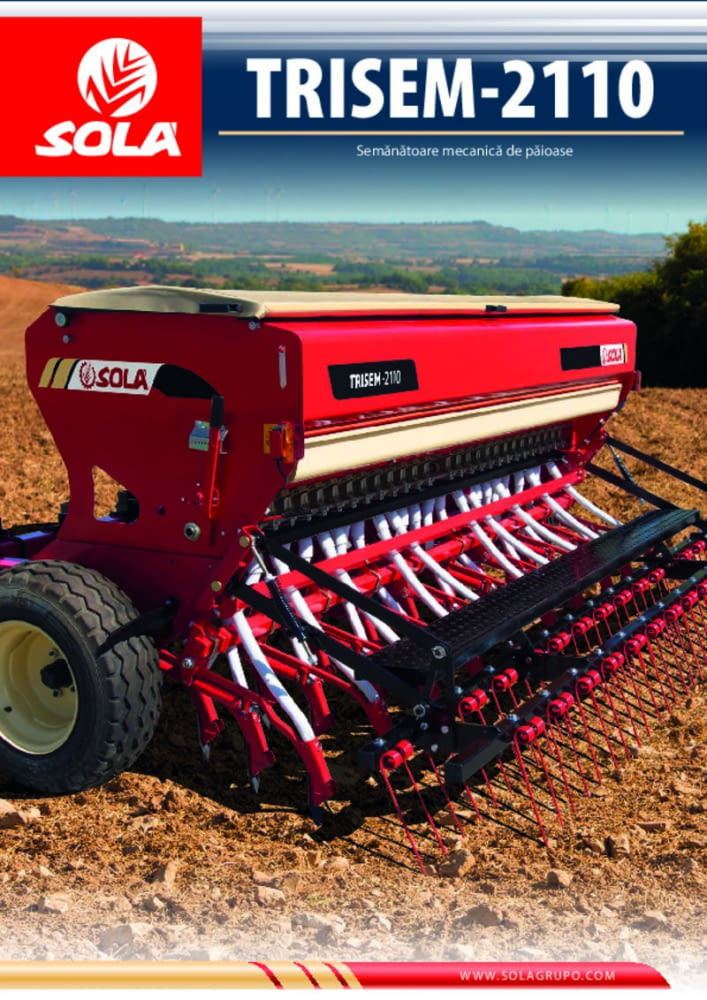

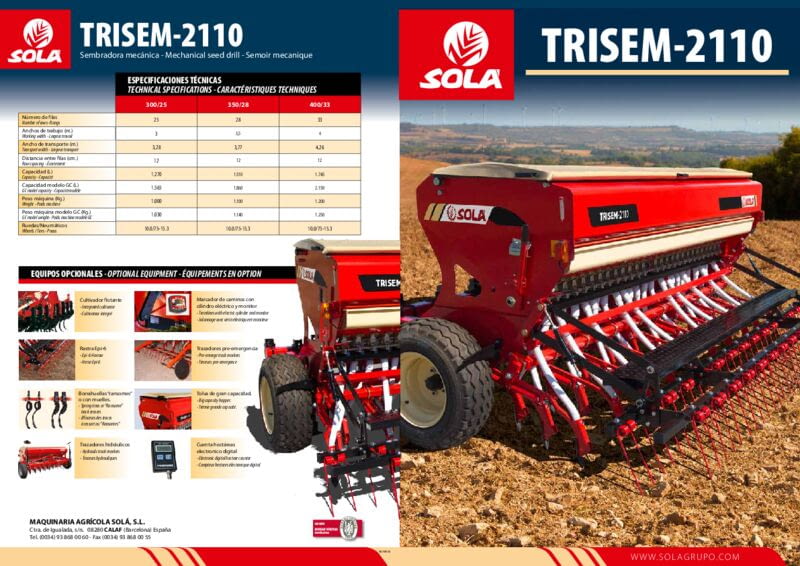

TRI-2110

The TRI-2110 is a mechanical seed drill for conventional seeding.
With a seeding unit mounted in two or three rows, depending on the type of arm.
It can be equipped with a combined hopper.

Available with large capacity hopper (up to 1,860 litres).
Metering unit for various types of seed and fertiliser.
Optional symmetrical tramlines.
  300/22 300/25 350/25 350/28 400/28 400/31 400/33
Furrower type TINE COULTER
Working width [m] 3 3,5 4
Number of rows 3 3
Transport width [m] 3,28 3,77 4,26
Number of rows 22 25 25 28 28 31 33
Row spacing [cm] 13,6 0,0 14,0 0,0 14,3 0,0 0,0
Standard seed hopper capacity [l] 1.270 1.510 1.745
Large seed hopper capacity [l] 1.565 1.860 2.150
Standard seed/fertiliser hopper capacity [l] 713/583 846/692 978/800
Large seed/fertiliser hopper capacity [l] 870/750 1031/889 1193/1028
Weight with standard seed hopper [kg] 970 1000 1070 1100 1150 1180 1200
Weight with large seed hopper [kg] 1000 1030 1110 1140 1200 1230 1250
Weight with standard seed/fertiliser hopper [kg] - - - - - - -
Weight with large seed/fertiliser hopper [kg] - - - - - - -
Reload height [cm] 154
Reload opening [cm] 253x59 303x59 353x59
Coupling category Cat. II
Minimum power required [hp] 110 110 120 120 130 130 130
Wheels 10,0/75-15,3 10,0/75-15,3
Metering unit drive SEED machine Mechanical with speed variator. Metering unit for different types of seed
Metering unit drive SEED/FERTILISER machine Mechanical with double speed variator. Metering unit for different types of seed and fertiliser
Hopper seed agitators Standard on seed
Seed drop tubes Plastic-coated spring. 1 drop tube per row both on the seed model and the seed/fertiliser model
Spring harrow Double row of straight tines. Optional
Track eradicators Optional
Seed dose calibration kit Standard
Hopper access platform Standard
Signal lights Standard
Main wheel scrapers Standard
Tramlines Optional, with electric clutch only for machine without fertiliser
  300/22 300/25 350/25 350/28 400/28 400/33
Furrower type SUFFOLK COULTER
Working width [m] 3 3 3,5 3,5 4 4
Number of rows 3 3 3 3 3 3
Transport width [m] 3,28 4,26 4,26 4,26 4,26
Number of rows 22 25 25 28 28 33
Row spacing [cm] 13,6 12,0 14,0 12,5 14,3 12,1
Standard seed hopper capacity [l] 1.270 1.510 1.510 1.745
Large seed hopper capacity [l] 1.565 1.860 1.860 2.150
Standard seed/fertiliser hopper capacity [l] 713/583 846/692 846/692 978/800
Large seed/fertiliser hopper capacity [l] 870/750 1031/889 1031/889 1193/1028
Weight with standard seed hopper [kg] - - - - - -
Weight with large seed hopper [kg] - - - - - -
Weight with standard seed/fertiliser hopper [kg] - - - - - -
Weight with large seed/fertiliser hopper [kg] - - - - - -
Reload height [cm] 154 154
Reload opening [cm] 253x59 303x59 353x59
Coupling category Cat. II  Cat. II
Minimum power required [hp] 110 110 120 120 130 130
Wheels 10,0/75-15,3
Metering unit drive SEED machine Mechanical with speed variator. Metering unit for different types of seed
Metering unit drive SEED/FERTILISER machine Mechanical with double speed variator. Metering unit for different types of seed and fertiliser
Hopper seed agitators Standard on seed
Seed drop tubes Plastic-coated spring. 1 drop tube per row both on the seed model and the seed/fertiliser model
Spring harrow Double row of straight tines. Optional
Track eradicators Optional
Seed dose calibration kit Optional
Hopper access platform Standard
Signal lights Standard
Main wheel scrapers Standard
Tramlines Optional, with electric clutch only for machine without fertiliser
  300/19 300/21 350/21 350/25 400/25 400/29
Furrower type DOUBLE DISC
Working width [m] 3 3 3,5 3,5 4 4
Number of rows 2 3 2 3 2 3
Transport width [m] 3,28 3,77 3,77 4,26
Number of rows 19 21 21 25 25 29
Row spacing [cm] 15,8 14,3 16,7 14,0 16,0 13,8
Standard seed hopper capacity [l] 1.270 1.510 1.510 1.745
Large seed hopper capacity [l] 1.565 1.860 1.860 2.150
Standard seed/fertiliser hopper capacity [l] 713/583 846/692 846/692 978/800
Large seed/fertiliser hopper capacity [l] 870/750 1031/889 1031/889 1193/1028
Weight with standard seed hopper [kg] - 1230 - - - -
Weight with large seed hopper [kg] - 1260 - - - -
Weight with standard seed/fertiliser hopper [kg] - - - - - -
Weight with large seed/fertiliser hopper [kg] - - - - - -
Reload height [cm] 154 154
Reload opening [cm] 253x59 303x59 303x59 353x59
Coupling category Cat. II  Cat. II
Minimum power required [hp] 110 110 120 120 130 130
Wheels 10,0/75-15,3
Metering unit drive SEED machine Mechanical with speed variator. Metering unit for different types of seed
Metering unit drive SEED/FERTILISER machine Mechanical with double speed variator. Metering unit for different types of seed and fertiliser
Hopper seed agitators Standard on seed
Seed drop tubes Plastic-coated spring. 1 drop tube per row both on the seed model and the seed/fertiliser model
Spring harrow Double row of straight tines. Optional
Track eradicators Optional
Seed dose calibration kit Optional
Hopper access platform Standard
Signal lights Standard
Main wheel scrapers Standard
Depth control wheel scrapers Standard
Tramlines Optional, with electric clutch only for machine without fertiliser
