ARGO

The ARGO is a large planter with a working width of 12m.
It has large capacity hoppers of 4,500 litres or 2 x 3,300 litres.
The grain seeding unit is a floating seeding unit articulated with PROSEM K and K Elektra row units.
It is also possible to equip it with a double disc seeding unit for cereals.

Can be equipped with a double disc sowing system for cereals.
Steel hopper with a capacity of 2x3100 litres.
ISOBUS electrical interchangeable modular roller distributor.
Distribution of up to 3 products simultaneously.
Hydraulic folding chassis system.







Row unit "K ELEKTRA"


  1. Articulated parallelograms system for great stability and amplitude of travel, ensuring perfect adaptation to the sowing surface.
  2. Row unit pressure load spring with adjustment via 6-position lever.
  3. Self-lubricating sintered bushing for durable articulation systems with zero maintenance during the sowing season.
  4. 50-litre seed hopper.
  5. Seed metering unit with suction dosing system, made of high resistance polymers for a long working life and minimum maintenance.
  6. Easy-access sowing disc inspection window.
  7. Extremely easy replacement of the sowing disc thanks to its patented fixing system.
  8. Emptying of the seed metering unit through a trap in the bottom of the metering unit.
  9. Continuous adjustment of sowing depth by means of a crank ensures seed planting is carried out correctly at the required depth (deep sowing kit option).
  10. Internal and external sowing disc cleaners made of anti-wear steel.
  11. Record of covering element pressure by spring and a 5-position lever.
  12. Regulation of the closing wheel angle by 4-position lever.
  13. External scrapers on depth control wheels.
  14. Semi-pneumatic depth control wheels Ø400x115 mm with bearings fitted with triple dust ingress protection.
  15. 15 Optimum furrow opening thanks to the low angle between the discs, which ensures a perfect seed emergence with the lowest power consumption, through Ø15" sowing discs with bearings fitted with triple dust protection.
  16. Interchangeable seed tube protective Suffolk coulter.
  17. Seed tube with anti-wear protection.
  18. Semi-pneumatic Ø13"x2" closing wheels with bearings fitted with triple dust protection.
  19. Planting depth controlled directly on the point of fall of the seed.
  20. Height-adjustable front clod remover with furrower blade to ensure correct preparation of the seedbed.
  21. Automatic element exclusion.
  22. Revolutionary step-by-step electric motor transmission system. The advantages of this system are numerous: long working life for motors, improved sowing precision, possibility of sowing by independent variable doses row by row, easy and simple adjustment of sowing rate from the tractor cab, ISOBUS communication protocol, section control row by row, pre-loading of the metering unit, statistical information on sowing activities.
  23. One standard sowing disc included.






The ARGO with PROSEM sowing unit can be equipped with electric transmission.

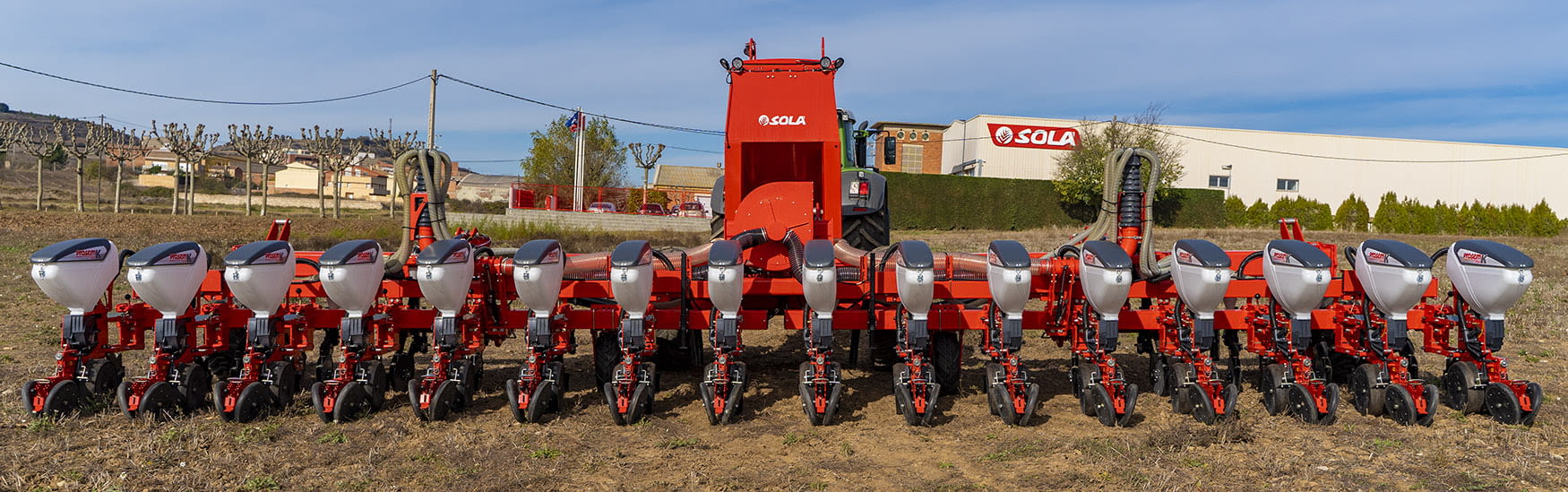

Argo with PROSEM sowing equipment.

The ARGO offers the possibility of equipping both the disc drill and a 12 metre PROSEM precision planter. It is as easy as hooking up one or the other.

  400/16 400/24
Frame type Foldable for transport, in single-bar fixed work with fixed distance between units. Row units clamped to the frame.
Coupling type Ring (other options available)
Row unit PROSEM ELEKTRA
Transport width [m] 4,00 4,00
Number of rows 16 24
Row spacing [cm] (2) 70-75 45-50
Working width [m] 12
Transport width [m] 4
Transport height [m] 4,4
Sowing distance changing From ISOBUS monitor (not included as standard, see page 213)
Turbine drive Hydraulic
Number of support or transmission wheels 4 support wheels 8 support wheels
Support or transmission wheel dimensions 23 x 8.5
Choose between transport wheel dimensions 650/50R22.5 and 560/60R22.5
Seed metering unit drive ISOBUS electric
Speed connection 7-pin. Other options available in chap. "GNSS receivers"
Sowing control From ISOBUS monitor (not included as standard, see chap. "Control monitors")
ISOBUS compatibility Verify compatibility between ECU and ISOBUS terminal of the tractor - See chap. "ISOBUS compatibility questionnaires"
Tractor hydraulic requirements 1 DA, 3 SA + 1 free return elektra without micro or mechanical with micro
Minimum tractor power required [hp] 240
Turbine vacuum gauge Analogue vacuum gauge as standard
Section control From ISOBUS monitor (not included as standard, see chap. "Control monitors") - Requires license, speed connection and positioning
Variable dose From ISOBUS monitor (not included as standard, see chap. "Control monitors") - Requires license, speed connection, positioning and prescription maps
Energy generator Power pack with hydraulically-driven alternator
Seed hopper capacity [l] 50
Depth control wheels 400 x 115 (400 x 65 as an option, recommended for row spacing of less than 45 cm, see chap."Options")
Closing wheels 2" rubber V as standard, for other options see chap. "Options"
Hydraulic row markers Optional, with flat disc to wheel (1)
Signal lights Standard
Sowing discs 1 set of "standard" discs included with the machine (see chap. "Sowing discs")
Centralised micro capacity [l] 2 x 185
Centralised micro metering unit drive ISOBUS electric (requires an optional speed connection, see chap. "GNSS receivers")
Centralised slug repellent capacity [l] 1 x 185
Centralised slug repellent metering unit drive ISOBUS electric (requires an optional speed connection, see chap. "GNSS receivers")
Fertiliser hopper capacity [l] 1x4500 or 2x3100 l
Fertiliser metering unit drive ISOBUS electric (requires an optional speed connection, see chap. "GNSS receivers")
Road transport type approval Check available type approvals per market
