ARES

The ARES is a pneumatic seed drill, available in various working widths ranging from 4 m to 7 m. Versatile as few others, it can perform everything from conventional seeding to minimum tillage depending on the type of arm fitted. Robust and reliable, it will give you optimum performance in the field.
2,000 litre capacity hopper made of high-strength polymer.
Versatile, compact and highly resistant design.
Floating chassis in three sections.
Transport safety systems.
  400/32 400/32 450/36 450/36 500/40 500/40 600/48 600/48 700/48 700/48
Furrower type TINE COULTER
Working width [m] 4 4,5 5 6 7
Number of rows 3 4 3 4 3 4 3 4 3 4
Transport width [m] 3,05 3,05
Number of rows 32 36 40 48 48
Row spacing [cm] 12,5 12,5 12,5 12,5 14,6
Hopper capacity [l] 2000 2000
Weight of machine with track eradicators [kg] (1) 1525 1635 1745 - 1785 1810 1910 1965 - 2035
Weight of machine with cultivator [kg] (2) 1865 N/A 2100 N/A 2175 N/A 2320 N/A - N/A
Reload height [cm] 235 235
Reload opening [cm] 125X140 125X140
Coupling category Cat. III Cat. III
Minimum power required [hp] (3) 120 120 140 160 180
Main wheels/tyres Standard wheels [10.75-15.3] / Optional flotation wheels [340/55-16]
Metering unit drive Mechanical via gears
Turbine drive Choose between mechanical with PTO drive shaft at 1000 rpm or hydraulic
Required hydraulic flow [l/min] 40
Tine spring harrow Two rows of straight tines. Standard.
Removable selector sieve Standard
Seed dose calibration kit Standard
Controller/monitor Standard. See characteristics in chap. "Control monitors"
Signal lights and work lights Standard
Depth control wheel equipment Standard: 2 wheels on wings (1 on each wing) and 0 wheels on central part
Main wheel scrapers Standard
Foldable parts shut-off [no. of outputs] 14 14 18 18 22 22 30 30 32 32
  400/32 450/36 500/40 600/48
Furrower type SUFFOLK COULTER
Working width [m] 4 4,5 5 6
Number of rows 3 3 3 3
Transport width [m] 3,05
Number of rows 32 36 40 48
Row spacing [cm] 12,5 12,5 12,5 12,5
Hopper capacity [l] 2000
Weight of machine with track eradicators [kg] (1) - - 1845 1950
Weight of machine with cultivator [kg] (2) - - 2255 2360
Reload height [cm] 235
Reload opening [cm] 125X140
Coupling category Cat. III
Minimum power required [hp] (3) 120 120 140 160
Main wheels/tyres Standard wheels [10.75-15.3] / Optional flotation wheels [340/55-16]
Metering unit drive Mechanical via gears
Turbine drive Choose between mechanical with PTO drive shaft at 1000 rpm or hydraulic
Required hydraulic flow [l] 40
Tine spring harrow Two rows of straight tines. Standard.
Removable selector sieve Standard
Seed dose calibration kit Standard
Controller/monitor Standard. See characteristics in chap. "Control monitors"
Signal lights and work lights Standard
Depth control wheel equipment Standard: 2 wheels on wings (1 on each wing) and 0 wheels on central part
Main wheel scrapers Standard
Foldable parts shut-off [no. of outputs] 14 18 22 30
  400/32 450/36 500/40 600/48

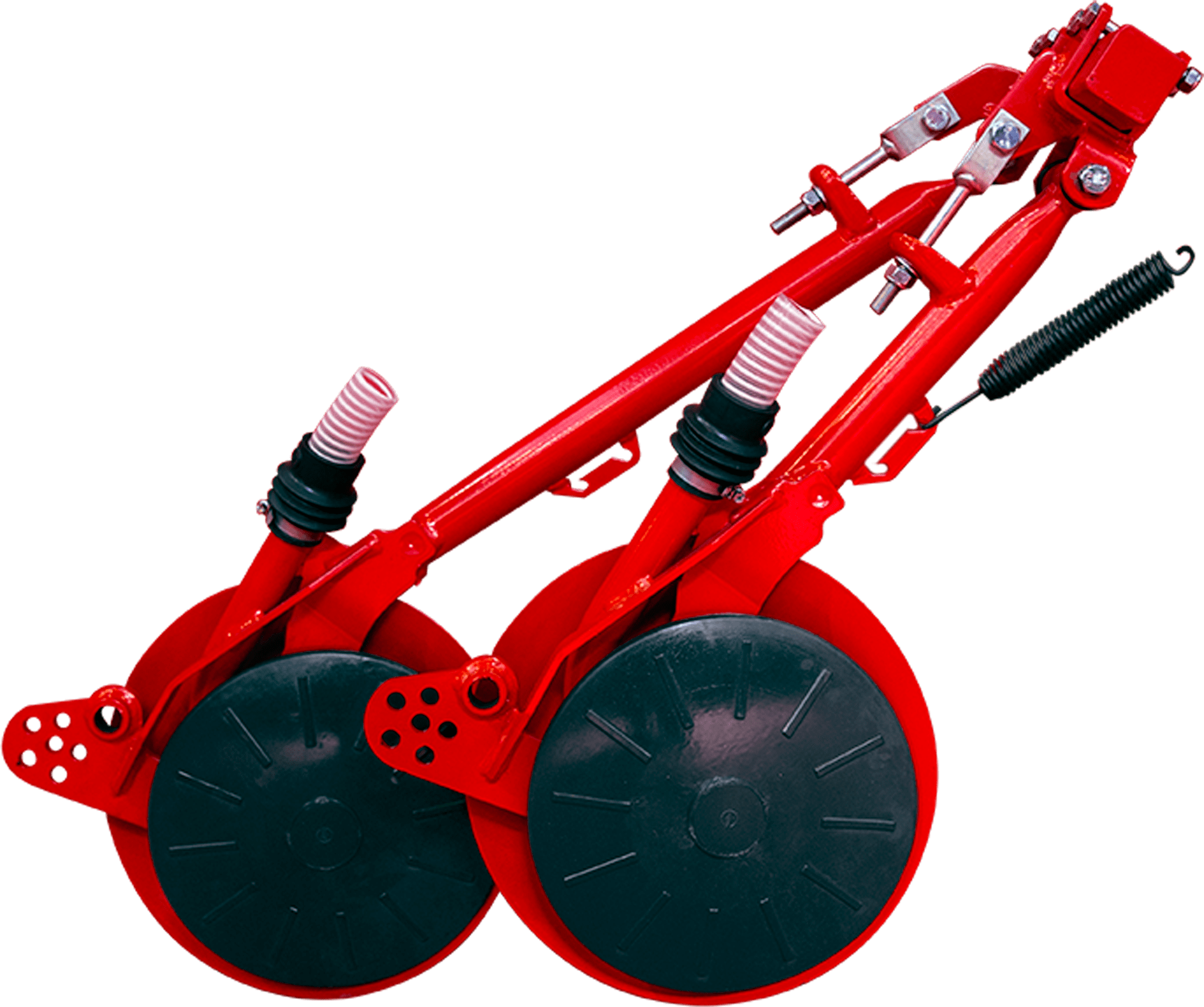

Furrower type DISC
Working width [m] 4 4,5 5 6
Number of rows 2 2 2 2
Transport width [m] 3,05
Number of rows 32 36 40 48
Row spacing [cm] 12,5 12,5 12,5 12,5
Hopper capacity [l] 2000
Weight of machine with track eradicators [kg] (1) - - 2025 2090
Weight of machine with cultivator [kg] (2) - - 2415 2500
Reload height [cm] 235
Reload opening [cm] 125X140
Coupling category Cat. III
Minimum power required [hp] (3) 120 120 140 160
Main wheels/tyres Standard wheels [10.75-15.3] / Optional flotation wheels [340/55-16]
Metering unit drive Mechanical via gears
Turbine drive Choose between mechanical with PTO drive shaft at 1000 rpm or hydraulic
Required hydraulic flow [l] 40
Tine spring harrow Two rows of straight tines. Standard.
Removable selector sieve Standard
Seed dose calibration kit Standard
Controller/monitor Standard. See characteristics in chap. "Control monitors"
Signal lights and work lights Standard
Depth control wheel equipment - Standard: 2 wheels on wings (1 on each wing) and 0 wheels on central part
Main wheel scrapers Standard
Foldable parts shut-off [no. of outputs] 12 16 20 28
  400/24 450/28 500/32 600/38
Furrower type DOUBLE DISC WITH PARALLELOGRAM
Working width [m] 4 4,5 5 6
Number of rows 2 2 2 2
Transport width [m] 3,05
Number of rows 24 28 32 38
Row spacing [cm] 16,7 16,1 15,6 15,8
Hopper capacity [l] 2000
Weight of machine with track eradicators [kg] (1) 1845 - 2120 2310
Weight of machine with cultivator [kg] (2) 2185 - 2510 2720
Reload height [cm] 235
Reload opening [cm] 125X140
Coupling category Cat. III
Minimum power required [hp] (3) 120 120 140 160
Main wheels/tyres Standard wheels [10.75-15.3] / Optional flotation wheels [340/55-16]
Metering unit drive Mechanical via gears
Turbine drive Choose between mechanical with PTO drive shaft at 1000 rpm or hydraulic
Required hydraulic flow 40
Tine spring harrow Single with angled tines. Standard.
Removable selector sieve Standard
Seed dose calibration kit Standard
Controller/monitor Standard. See characteristics in chap. "Control monitors"
Signal lights and work lights Standard
Depth control wheel equipment - Standard: 2 wheels on wings (1 on each wing) and 0 wheels on central part
Main wheel scrapers Standard
Foldable parts shut-off [no. of outputs] 10 12 16 22
  400/25 450/28 500/31 500/40 600/37 600/48 700/43
Furrower type PT
Working width [m] 4 4,5 5 5 6 6 7
Number of rows 4 4 4 4 4 4 4
Transport width [m] 3,05
Number of rows 25 28 31 40 37 48 43
Row spacing [cm] 16,0 16,1 16,1 12,5 16,2 12,5 16,3
Hopper capacity [l] 2000
Weight of machine with track eradicators [kg] (1) 1740 1765 1890   1920 1980 -
Weight of machine with cultivator [kg] (2) 2080 2120 2280   2330 2390 -
Reload height [cm] 235
Reload opening [cm] 125X140
Coupling category Cat. III
Minimum power required [hp] (3) 120 120 140 140 160 180 180
Main wheels/tyres Standard wheels [10.75-15.3] / Optional flotation wheels [340/55-16]
Metering unit drive Mechanical via gears
Turbine drive Choose between mechanical with PTO drive shaft at 1000 rpm or hydraulic
Required hydraulic flow [l] 40
Tine spring harrow Two rows. First row of angled tines and second row of straight tines. Standard
Removable selector sieve Standard
Seed dose calibration kit Standard
Controller/monitor Standard. See characteristics in chap. "Control monitors"
Signal lights and work lights Standard
Depth control wheel equipment Standard: 2 wheels on wings (1 on each wing) and 0 wheels on central part
Main wheel scrapers Standard
Foldable parts shut-off [no. of outputs] 10 14 16 22 22 30 28
